Patriot Series Readers

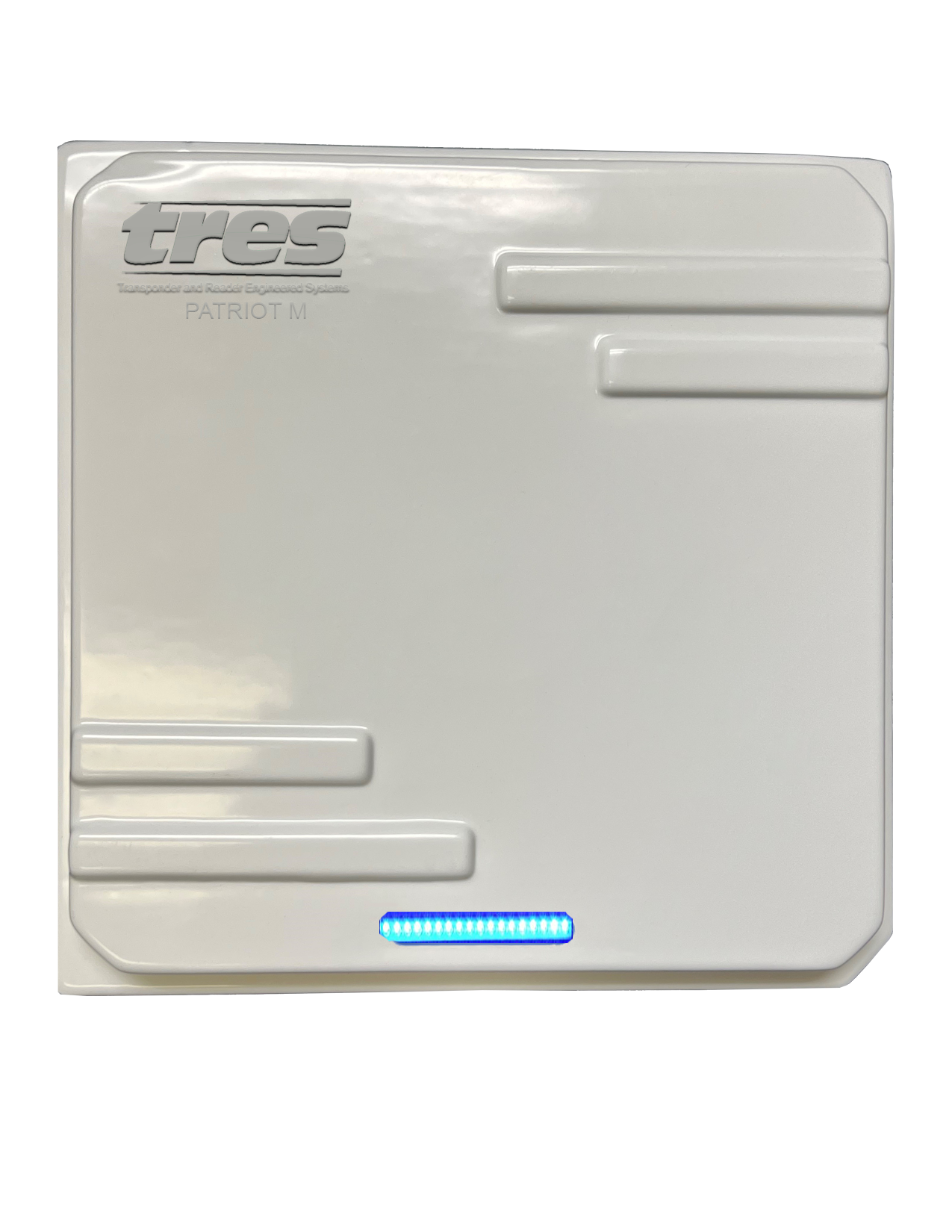

Patriot M

The Patriot M series is our value reader and supports a variety of communication protocols that includes Wiegand or RS232.

Key Features:

• Read Range: 16’ - 20’

• Wiegand or RS232

• Supports Multiple Wiegand Bit Formats

• LED Indicator

• Variable 12 to 48VDC Input Voltage

• Frequency Hopping 902-928mHZ

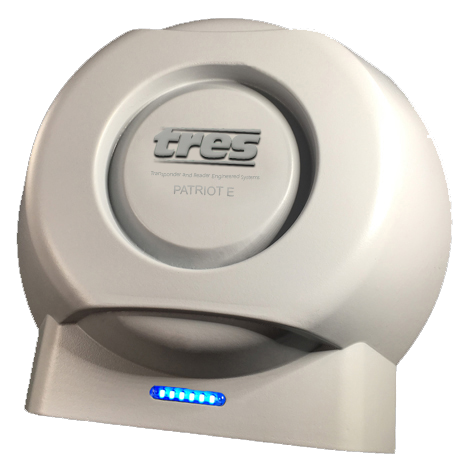

Patriot E

The Patriot E series supports a variety of communication protocols that includes Wiegand and RS232, RS485, OSDP (Optional TCP/IP and WIFI).

Key Features:

• Read Range: 18’- 25’

• Wiegand, RS232, RS485, OSDP

• Supports Multiple Wiegand Bit Formats

• LED Indicator and Relay

• Variable 12 48VDC Input Voltage

• Frequency Hopping 902 - 928mHZ

Patriot L

The Patriot L series supports a variety of communication protocols that includes Wiegand, RS232 (Optional RS485, OSDP, TCP/IP and WIFI)

Key Features:

• Read Range: 18’ - 25’

• Wiegand and RS232

• Supports Multiple Wiegand Bit Formats

• LED Indicator and Relay

• Variable 12 to 48VDC Input Voltage

• Frequency Hopping 902 - 928mHZ

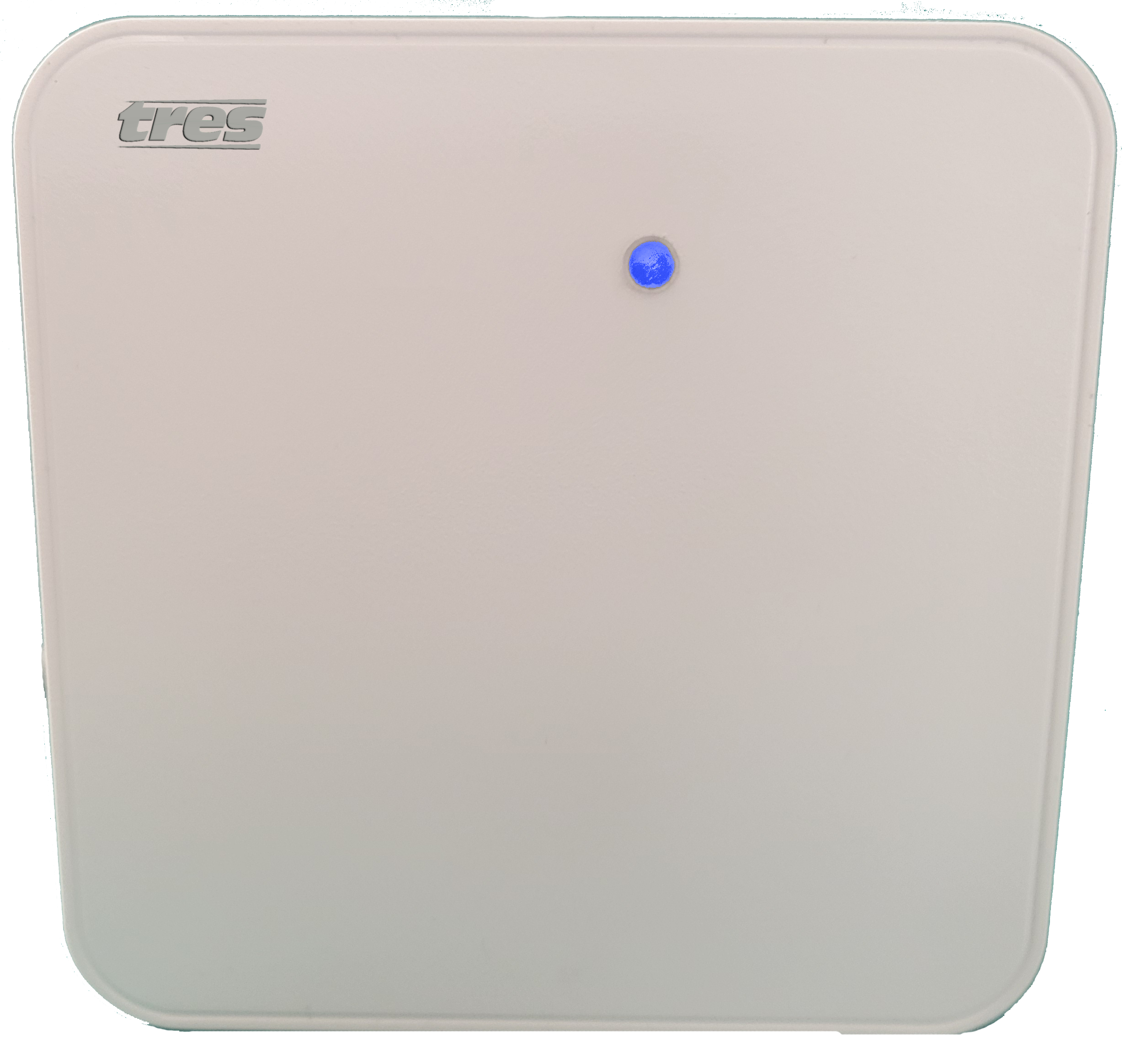

PATRIOT SR

The Patriot SR reader is a short range reader that provides high performance for perimeter access and buildings access, along with industrial production process controls.  Supports 26-bit Wiegand format.

Key Features:

• Read Range: 1’ - 7’

• Wiegand

• Supports 26-bit Wiegand Format

• LED Indicator

• Variable 12-24VDC Input Voltage

• Frequency Hopping 902-928mHZ
