TRES-433


The TRES433 Passive Receiver and our active tags are well suited for Asset Tracking, Vehicle ID, Personnel Tracking and any RFID application where long read ranges are needed. Multiple Antenna options and data output formats make this a flexible and robust option for your RFID needs. The TRES433 passive receiver interfaces easily with Wiegand, Serial or TCP/IP controllers.  The TRES433 active tags have replaceable batteries, thereby eliminating the most common issues of having to replace the tag after the battery dies.  Plus, the TRES433 tags are also available with an accelerometer, meaning the tag will transmit a unique signal when in motion, a feature that is invaluable for theft prevention and monitoring of unguarded assets.

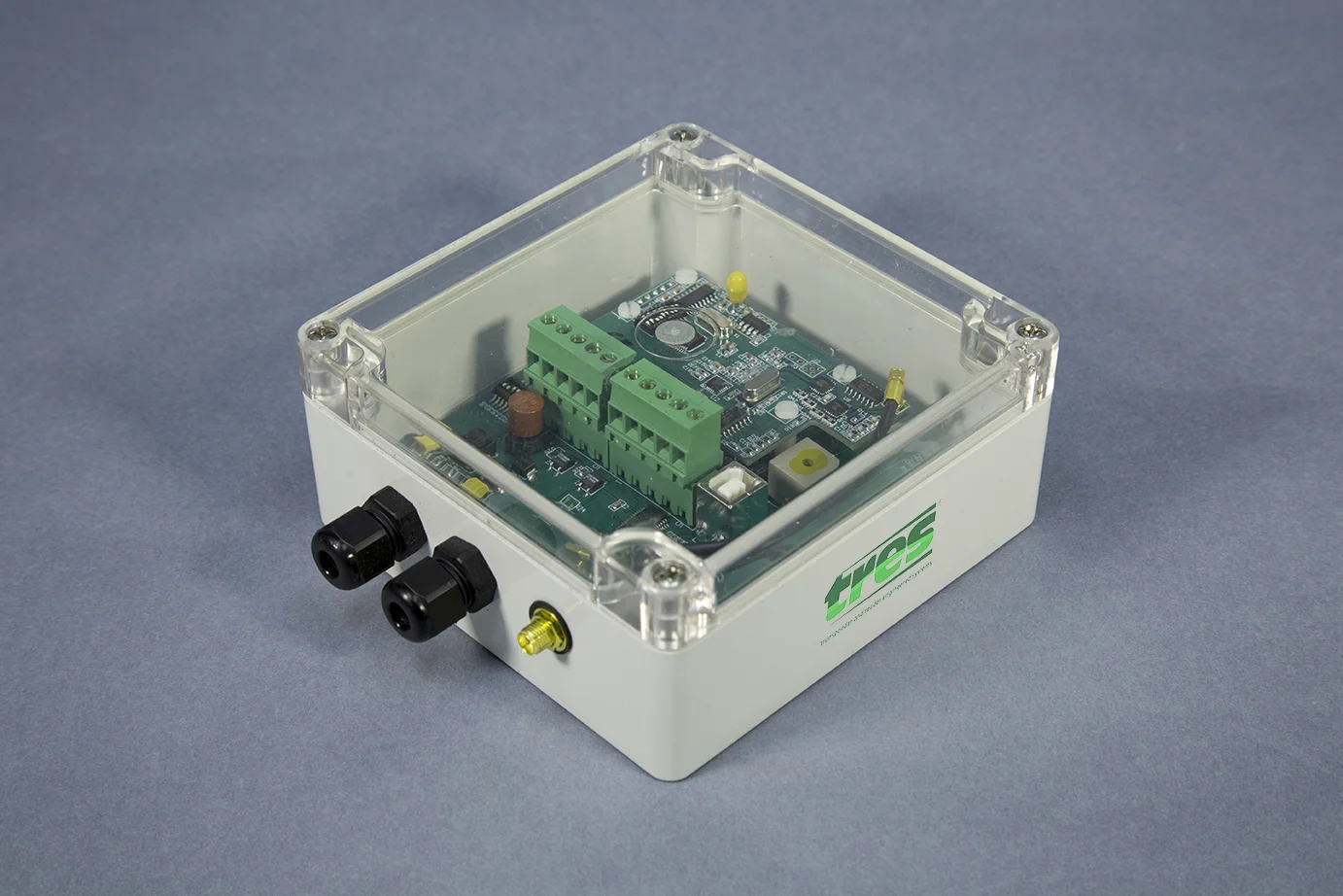

TRES433 receiver

  • TRES433-RW | Output: 26-Bit Wiegand

  • TRES433-RS | Output: Serial RS232/485

  • TRES433-RE | Output: Ethernet TCP/IP

Standard Features:

  • Up to 45 Foot Read Range with Internal Etched antenna

  • Longer Range and Lane Control Options available

  • Auto Tune Tag for faster read range distance tuning

  • FSK Modulation

  • RSS (Relative Signal Strength) Output to serial or TCP/IP devices

  • Power, Transmit and Receive LEDS

  • Piezo On/Off Control

  • NEMA Enclosure IP67 Rate


TRES433 ACCESSORIES INCLUDE:

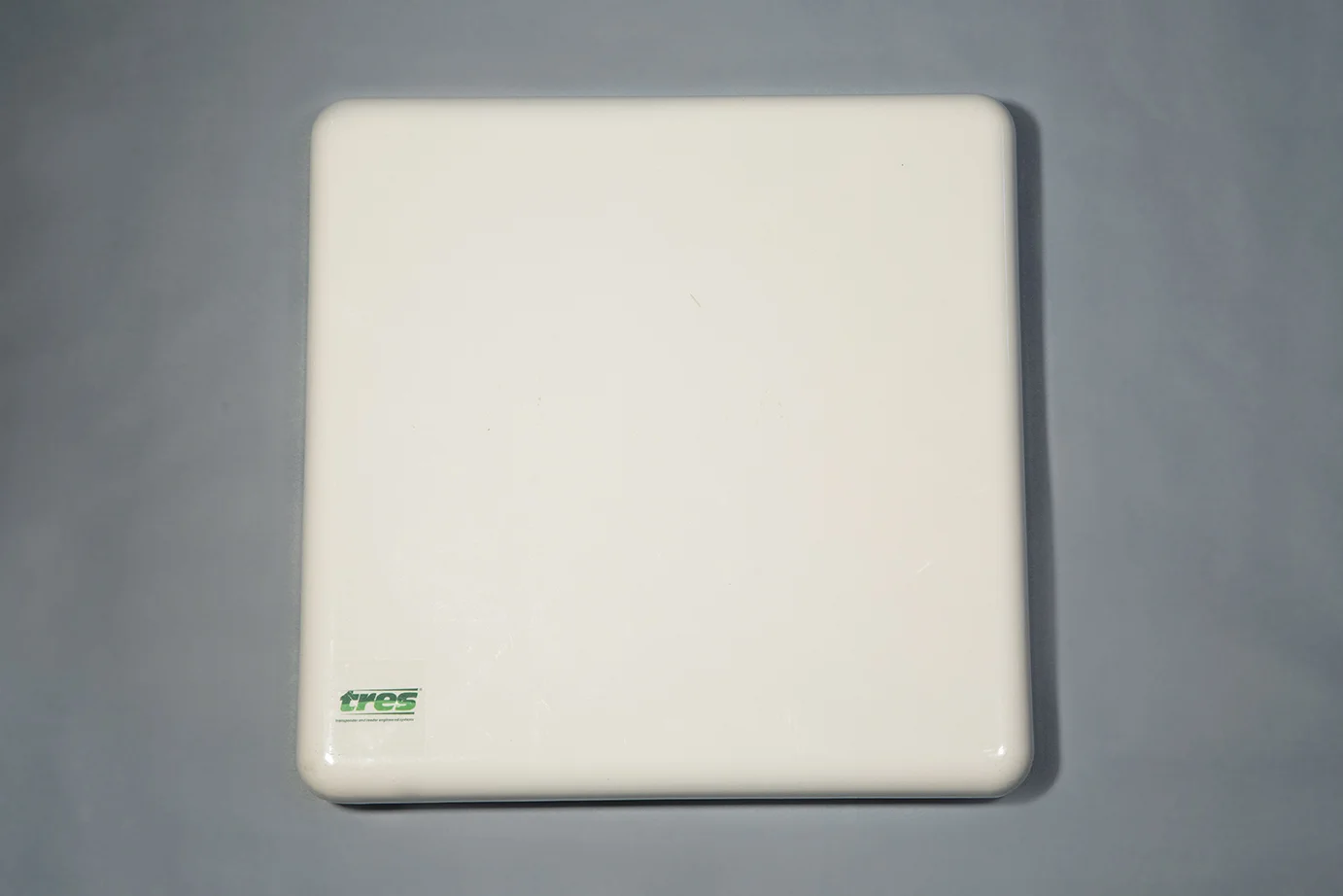

  • TRES433-ANTENNA; Circular, polarized, antenna, RoHS, CE, IP67 rated with mount bracket

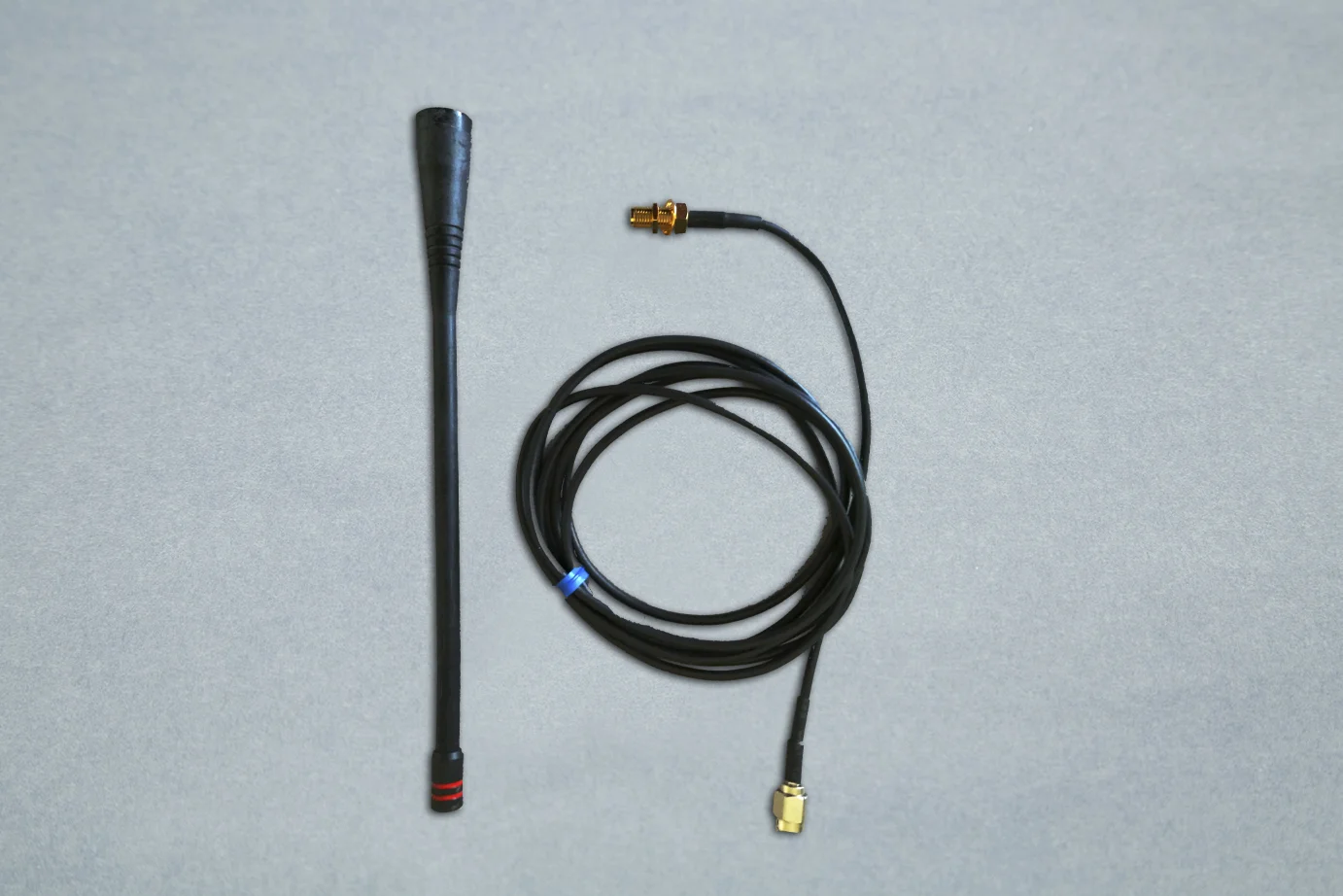

  • TRES433-ANT-WHIP-KT; External antenna with skinny cable







  • TRES433-CAB12-BEEFY; 12’ Beefy cable kit, includes adapter for TRES433 Receiver

  • TRES433-CAB25-BEEFY; 25’ Beefy cable kit, includes adapter for TRES433 Receiver

TRES433 TAGS

This device complies with Part 15 of the FCC rules.


TRES433-CS or CS-ACL
Clamshell
3.375” x 2.125” x .25”
Weight: 2oz / 57 grams
Housing: Sealed ABS, IP65
Replaceable Lithium Ion Battery


TRES433-MM or MM-ACL
Metal Mount
3.0” x 2.0” x 1.0”
Weight: 4oz / 113 grams
Housing: ABS, metal spacing
Replaceable Lithium Ion Battery

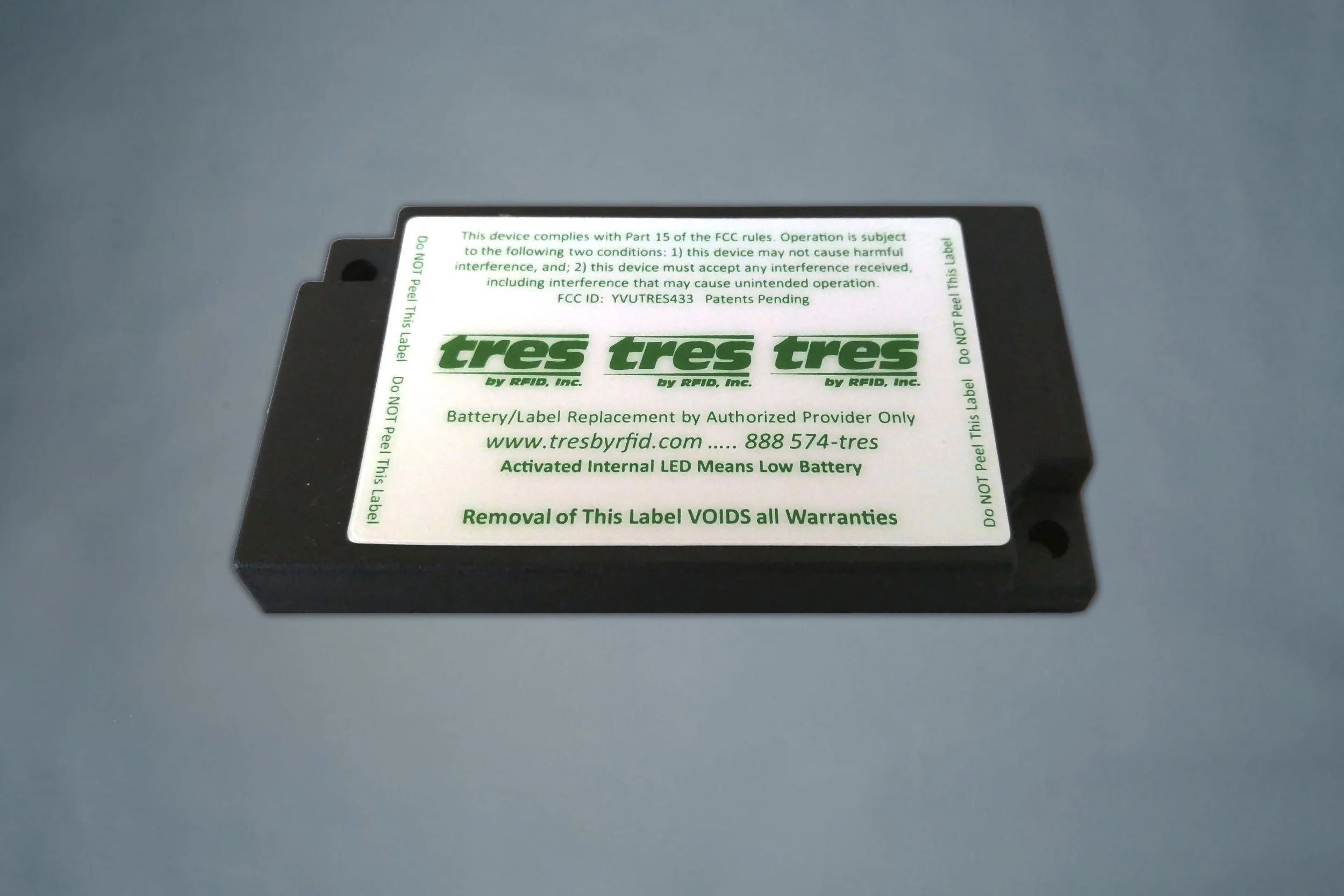

TRES433-AT or AT-ACL
Asset Mount
4.0” x 2.125” x .54”
Weight: 4oz / 113 grams
Housing: Rynite, Potted, IP67
*Non-Replaceable Battery

Standard Features:

  • Power Supply: 3v Replaceable lithium ion battery; must be replaced by Authorized Dealer/Integrator.

  • TX Frequency: 433.92 MHz

  • Output Power: 1mW, default 10mW maximum

  • Beacon Rate: 1.90 to 2.01 seconds

  • Battery Life: 2 years warranted

  • Operational Temp: -40 F to +185 F

  • Humidity: 5% to 90%

  • Material: UV Stabilized (IP65)


Additional Features:

  • Anti-collision algorithm allows multiple tags reads simultaneously

  • Low battery status system output (serial or TCP/IP modes)

  • Battery removal detection (data flag trigger), (serial or TCP/IP modes)

  • Optional - Accelerometer (in-motion detection) output

  • Optional - OEM/Private label
